In the world of plastic manufacturing, innovation and precision go hand in hand. From colourful toys to UV-resistant agricultural films, the secret behind these specialised plastic properties often lies in a compact, powerful formulation known as a masterbatch. While most consumers never hear the term, those in the manufacturing industry recognise it as a game-changer.
In this comprehensive guide, we’ll explore the masterbatch meaning, how it works, its types, applications, advantages, and the growing role it plays in sustainable plastics.
Masterbatch Meaning: A Technical Introduction
What is a masterbatch?
A masterbatch is a concentrated mixture of pigments and/or additives encapsulated into a carrier resin, which is then cooled and cut into granular shapes like pellets. These pellets are later mixed with base plastic polymers during processing to colour plastics or to imbue them with specific properties such as UV resistance, flame retardancy, or anti-microbial behaviour.
In this comprehensive guide, we’ll explore the masterbatch meaning, how it works, its types, applications, advantages, and the growing role it plays in sustainable plastics, starting with the fundamental question: What is a Masterbatch?
Why Is Masterbatch Preferred Over Raw Additives?
When plastic manufacturers want to incorporate additives or colourants, they typically choose between raw powder/liquid forms or masterbatch.
Here’s why masterbatch often wins:
- Cleaner Processing: Unlike powders that cause dust and spills, masterbatch pellets are easy to handle.
- Precise Dosing: Enables accurate control of additive concentration.
- Better Dispersion: Offers uniform distribution throughout the polymer matrix.
- Longer Shelf Life: Pellets are more stable and easier to store than liquids.
- Cost-Efficient: Reduces waste and operational issues during production.

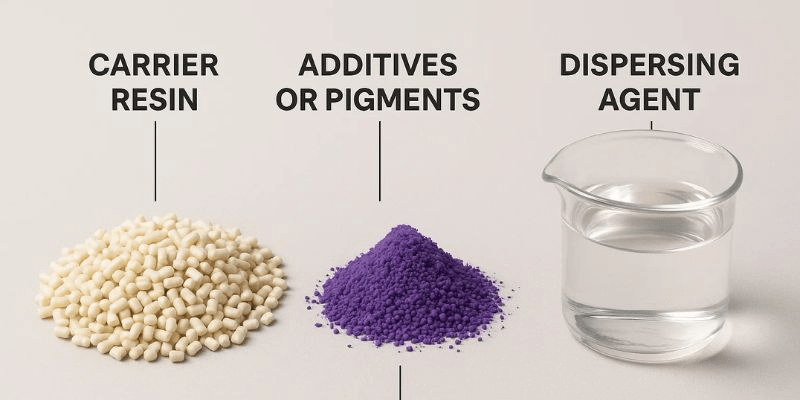

Components of a Masterbatch
To understand the masterbatch meaning in depth, we need to look at its components:
1. Carrier Resin
This is the base polymer in which the additives or colourants are dispersed. It must be compatible with the end-use polymer to ensure optimal mixing and product performance.
Common carriers:
- Polyethene (PE)
- Polypropylene (PP)
- Polystyrene (PS)
- PET (Polyethene Terephthalate)
- EVA (Ethylene-Vinyl Acetate)
2. Additives or Pigments
These can be colourants, UV stabilisers, flame retardants, slip agents, or a combination of such features.
3. Dispersing Agent
Ensures even distribution of the additives throughout the carrier resin, preventing agglomeration and streaking.

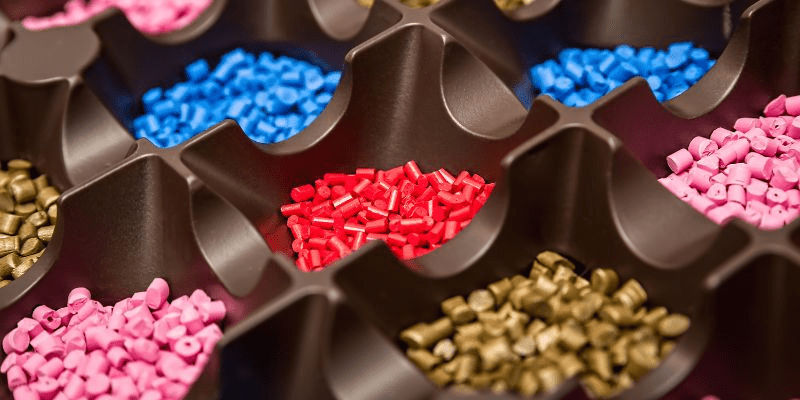

Types of Masterbatch
Masterbatches come in various forms depending on their functionality. The three main categories are:
1. Colour Masterbatch
Used to add specific shades or effects to plastic products, solid, metallic, pearlescent, transparent, or fluorescent.
2. Additive Masterbatch
This category includes functional additives such as:
- UV Stabilizers
- Flame Retardants
- Anti-static agents
- Antibacterial agents
- Lubricants or Slip agents
- Blowing agents (to reduce density)
3. Combination or Multifunctional Masterbatch
Combines colour and multiple additives in a single pellet, simplifying the production process and saving costs.

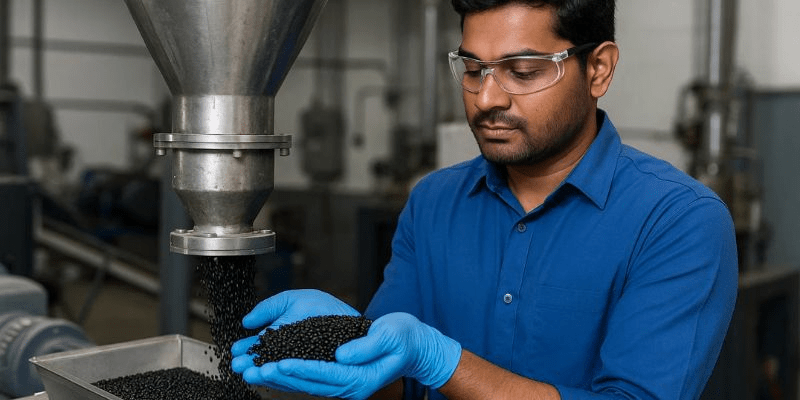

How Masterbatches Are Manufactured
The production of a masterbatch involves a specialized process using twin-screw extrusion technology. Here’s a simplified breakdown:
- Pre-mixing of pigments/additives with the carrier resin
- Melting and homogenization through extrusion
- Cooling of the molten mixture
- Cutting into pellets
- Quality testing for dispersion, colour accuracy, and stability
Each formulation is rigorously tested to ensure the end product’s consistency, performance, and safety.
Application Areas of Masterbatch
Masterbatches are used in almost every plastic product you can imagine. Here’s a breakdown by industry:
1. Packaging
Used in flexible films, bottles, and containers. UV stabilisers and anti-fog additives are common here.
2. Automotive
Masterbatch enhances durability and aesthetics in interior and exterior components. Heat stabilisers and flame retardants are essential.
3. Textiles and Fibres
Colour masterbatch is used in polypropylene (PP) fibres and PET yarns for carpets, sportswear, and upholstery.
4. Electrical & Electronics
Flame-retardant and anti-static masterbatches improve safety and function in wire casings and appliance housings.
5. Agriculture
UV-resistant films and greenhouse covers use masterbatches to enhance longevity and weather resistance.
6. Medical and Food-Grade Products
Masterbatches ensure compliance with regulatory standards while adding colour, anti-bacterial features, and more.
Advantages of Using Masterbatch
Feature |
Benefit |
|---|---|
Accurate dosing
|
Reduces wastage and enhances quality
|
Dust-free
|
Cleaner operations and safer workplaces
|
Easy handling
|
Less equipment corrosion or contamination
|
Storage-friendly
|
Long shelf life and low moisture uptake
|
Environmentally adaptive
|
Available in bio-based and recycled forms
|
Masterbatch vs. Compound vs. Liquid colourants
Property |
Masterbatch |
Compound |
Liquid colourants |
|---|---|---|---|
Flexibility
|
High
|
Low (fixed formula)
|
Moderate
|
Cleanliness
|
High
|
High
|
Low
|
Precision
|
High
|
Very High
|
Low
|
Dispersion
|
Excellent
|
Excellent
|
Limited
|
Cost-efficiency
|
Moderate to High
|
Low for small batches
|
High
|
What is a Masterbatch compared to others? It’s the perfect balance between practicality and performance for mid- to high-volume production.
Let-Down Ratio (LDR): How Much Masterbatch to Use?
The Let-Down Ratio refers to how much masterbatch should be added to the base polymer. Typical LDRs range from 1% to 5%, depending on the desired effect.
For example:
- A 2% LDR means 2 parts masterbatch to 98 parts base polymer.
This ratio must be optimised for cost, performance, and visual accuracy.
Innovations in Masterbatch Technology
Emerging tech is redefining what is a masterbatch capable of:
1. Nanotechnology
Nanoparticle masterbatches enhance electrical conductivity, barrier properties, and strength without bulkiness.
2. Antiviral & Antibacterial Additives
Particularly in medical packaging and hygiene-related plastics.
3. Scented Masterbatch
Used in toys and packaging for enhanced sensory appeal.
4. Glow-in-the-dark & Thermochromic Effects
For novelty and functional products like security tags or kids’ items.
Sustainability and Green Chemistry in Masterbatch
With growing global pressure for sustainable solutions, masterbatch manufacturers are going green:
- Bio-based carrier resins from renewable sources like corn or sugarcane
- Recycled-content masterbatches for circular economy plastic production
- Additives that improve biodegradability
- Lightweighting agents that reduce plastic use without compromising performance
Quality Considerations When Choosing a Masterbatch
An effective masterbatch should:
- Disperse uniformly
- Show no migration or leaching
- Be thermally stable during processing
- Be non-reactive with the base polymer
- Meet all regulatory and safety standards (like FDA, RoHS, REACH)
Manufacturers often test masterbatches using:
- Spectrophotometers (for colour matching)
- FTIR (for chemical composition)
- Thermal analysis (for heat resistance)
- Rheology tests (for flow properties)
How to Choose the Right Masterbatch Supplier
Here are some tips for sourcing:
- Check compatibility with your polymer and application.
- Look for in-house colour matching and technical support.
- Ensure compliance with local and international standards.
- Ask for samples and test with your processing equipment.
- Verify delivery timelines and support services.
Top masterbatch suppliers worldwide include:
- Budin Group
- Broadway Colours
- Ampacet
- Clariant
- Plastiblends India
Challenges in Using Masterbatch
Despite their benefits, masterbatches come with challenges:
- Overloading can affect polymer properties.
- Improper mixing can cause streaking or colour variations.
- Storage in humid environments can cause pellet degradation.
- Incompatibility with the base polymer can lead to processing defects.
However, with proper quality assurance and technical consultation, these challenges are easily manageable.
The Future of Masterbatch
What is a Masterbatch going to look like in the next decade?
- Smart masterbatches with embedded sensors
- Bioactive masterbatches for packaging
- 3D-printing compatible masterbatches
- Recyclable and compostable options
The future is bright and more colourful, functional, and sustainable thanks to this tiny but mighty innovation.
Final Thoughts
The next time you look at a brightly coloured shampoo bottle, an anti-static phone case, or a recyclable food tray, remember: a masterbatch likely played a key role in its creation.
From enhancing plastic’s appearance and performance to aligning with global sustainability goals, the role of masterbatch is more important than ever. By understanding the masterbatch meaning and how it integrates into the manufacturing process, businesses can unlock new efficiencies, improve product quality, and embrace a smarter, greener approach to plastics.
